Xhorse VVDI PROG Programmer Tool Device

Original Xhorse VVDI PROG Programmer
Software Version: 5.0.7
Firmware Version:2.2.2
Softwaredownload link:
VVDI PROG V5.0.5: https://mega.nz/file/VI1i0RSK#DZPhvq3C7Kh7dvEm_7xtgOlUr3o2cuMKmVENkHaXNCg
Password:123456


VVDI PROG Language:English,French,Italian,Spanish,Arabic,Cezch,Polish,Portuguese,Russian,Turkish,Chinese

VVDI-Prog programmer can get free for BMW ISN read function and NEC, MPC, Infineon etc chip continously update service.



TOP 6 reasons to get VVDI PROG Programmer

1.Built-in update software:Make VVDI Prog firmwareupdatetimely.
2.High-speed USB communication interface:Make software automatically connect.
3.Smart operation mode:possible causes of error will be listed
4.Reserve ports:For future update.
5.Self-test function:Check if the machine works well or not.
6.Power supply:Through USB cable, software will automatically prompt if the external USB power supply is needed


VVDI Prog Programmer Introduction:

Main Function:

Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series,
MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and
most eeprom chips etc .
Support chip data verify, checkblank function
Support data file compare function

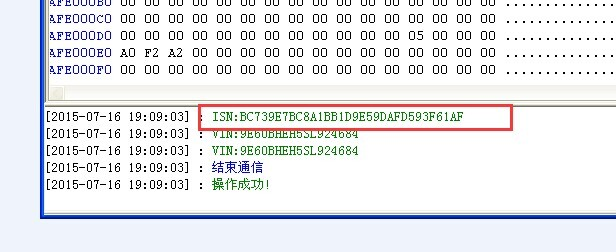

Support R&W for BMW N20, N55 ECU(show ISN directly)
Stable R&W MC9S12XE series chips(5M48H/1N35H/2M53J/3M25J etc.)
Support renew PCF79XX remote, currently support for BMW E/F series (Please Note PCF79XX adapter is optional)
Lots of connection diagram


VVDI Prog Update Log:

VVDI PROG latest software version V5.0.7 update

v5.0.6 (2021-09-13)
* This version DON't need update firmware
+ Add D70F3485 option in <2-MCU>->
+ Add BCM2(D70F3381/3634)(ADAPTER),BCM2(D70F3381/3634)(WELD),BCM2(D70F3382/3635)(ADAPTER),BCM2(D70F3382/3635)(WELD),LOCK_BCM2-1(ADAPTER),LOCK_BCM2-1(WELD),
LOCK_BCM2-2(ADAPTER), LOCK_BCM2-2(WELD),options in <4-IMMOBILIZER>->
+ Add CEM1(R5F64525)option in<4-IMMOBILIZER>->
+ Add GL6-AIRBAG(2016)option in<7-AIRBAG>->

v5.0.5 (2021-07-29)
* This version DON't need update firmware
+ Add MPC5632M,
MPC5633M,
MPC5634M,
options in <2-MCU>->
+ Add CR16MCS9V,
CR16MCT9V,
options in <2-MCU>->
+ Add R7F701417,
R7F701437,
R7F701441,
R7F701442,
R7F701461,
R7F701462 options in <2-MCU>->
+ Add for BUICK-REGAL-BCM(MC9S12XDP512) option in <4-IMMOBILIZER>->
+ Add S350 SRS(CR16MCT9VJE7) option in <7-AIRBAG>->

v5.0.2 (2021-04-30)
* This version DON't need update firmware
+ Add D160XX(ST),
D80XX(ST)
M35080XX(ST),
M35160XX(ST)
options in<1-EEPROM&FLASH>->
+ Add R5F10A/10B_Data_4KB_Write,
R5F10AxAx_Flash_16KB_Write,
R5F10A/10BxCx_Flash_32KB_Write,
R5F10A/10BxDx_Flash_48KB_Write,
R5F10A/10BxEx_Flash_64KB_Write,
R5F10A/10BxFx_Flash_96KB_Write,
R5F10A/10BxGx_Flash_128KB_Write,
options in <2-MCU>->
+ Add R5F11B_Data_4KB_Write,
R5F11BxCx_Flash_32KB_Write,
R5F11BxEx_Flash_64KB_Write,
options in<2-MCU>->
+ Add R5F11Z_Data_2KB_Write,
R5F11ZxAx_Flash_16KB_Write,
options in <2-MCU>->
+ Add STM32F103xC,
STM32F103xE,
STM32F105x8,
STM32F105xB,
STM32F105xC,
options in <2-MCU>->
+ Add Mitsubishi-Eclipse Cross-BCM(D70F3380) option in <4-IMMOBILIZER>->
+ Add CEM-V40-2014(SPC560B60L7) options in<4-IMMOBILIZER>->
+ Add CEM1(R5F64524) options in <4-IMMOBILIZER>->
+ Add SRS(MC9S12DG128-UNSECURED) options in <7-AIRBAG>->
+ Add ELANTRA-INDOOR-DISASTER-BOX(--17) options in <8-OTHER>->

v5.0.1 (2021-04-02)
* This version DON't need update firmware
+ Add R5F140_Data_8KB_Write,
R5F140xLx_Flash_512KB_Write,
R5F140xKx_Flash_384KB_Write,
options in<2-MCU>->
+ Add R5F10J/10K_Data_2KB_Write,
R5F10J/10KxCx_Flash_32KB_Write,
options in<2-MCU>->
+ Add R5F11AxJx_Flash_256KB_Write,
R5F11AxHx_Flash_192KB_Write,
R5F11AxGx_Flash_128KB_Write,
R5F11A_Data_8KB_Write,
options in <2-MCU>->
+ Add R5F11Ex8x_Flash_8KB_Write,R5F11ExAx_Flash_16KB_Write,
options in <2-MCU>->
+ Add R5F109_Data_4KB_Write,
R5F109x8x_Flash_8KB_Write,
R5F109xAx_Flash_16KB_Write,
R5F109xBx_Flash_24KB_Write,
R5F109xCx_Flash_32KB_Write,
R5F109xCx_Flash_48KB_Write,
R5F109xEx_Flash_64KB_Write,
options in <2-MCU>->
+ Add SPC564B64 option in <2-MCU>->
+ Add CAS1-2K79X/0L01Y option in<4-IMMOBILIZER>>
Add for BUICK-IMMO(2013)(HC08ASxx) option in<4-IMMOBILIZER>->

v5.0.0 (2021-03-09)
* This version DON't need update firmware
+ Add VVDI PROG USER MUNUAL 5.0.0 version in Doc folder
+ Add MAC9116VAG50 options in <2-MCU>->
+ Add MC68HC11A1,
MC68HC11A8,
MC68HC11EA9,
MC68HC11E1,
MC68HC11E9,
MC68HC11E20,
MC68HC11E32,
MC68HC11F1,
MC68HC11K4,
MC68HC11KA2,
MC68HC11KA4,
MC68HC11KG4,
MC68HC11KS2,
MC68HC11KW1,
MC68HC11P2,
MC68HC11PA8,
MC68HC11PH8,
MC68HC711E9,
MC68HC711E20,
MC68HC711EA9,
MC68HC711PH8 options in<2-MCU>->+ Add for FORD-ECU(AM29BDD160GB) option in <3-ECU>->
+ Add for YUANJING-BCM(2015) option in <4-IMMOBILIZER>->
+ Add T600-SMARTBOX(2014) option in <4-IMMOBILIZER>->
+ Add ECOSPORT-DASHBOARD(2015) option in <5-DASHBOARD>->
+ Add REGAL-AIRBAG(2018) option in<7-AIRBAG>->
+ Add TOUAREG-CHASSIS-MODULE(2010) option in <8-OTHER>->
* Fix some bug

VVDI Prog Cables and Function:
16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip by following the below picture.

1.3.2 MCU Reflash Cable
Used to program MCU on board

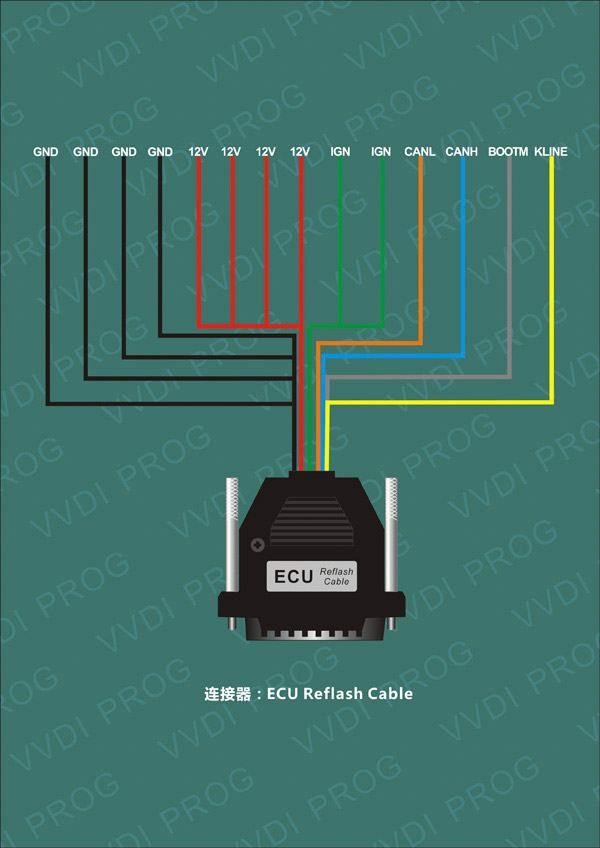

1.3.3 ECU Reflash Cable
Used to program ECU

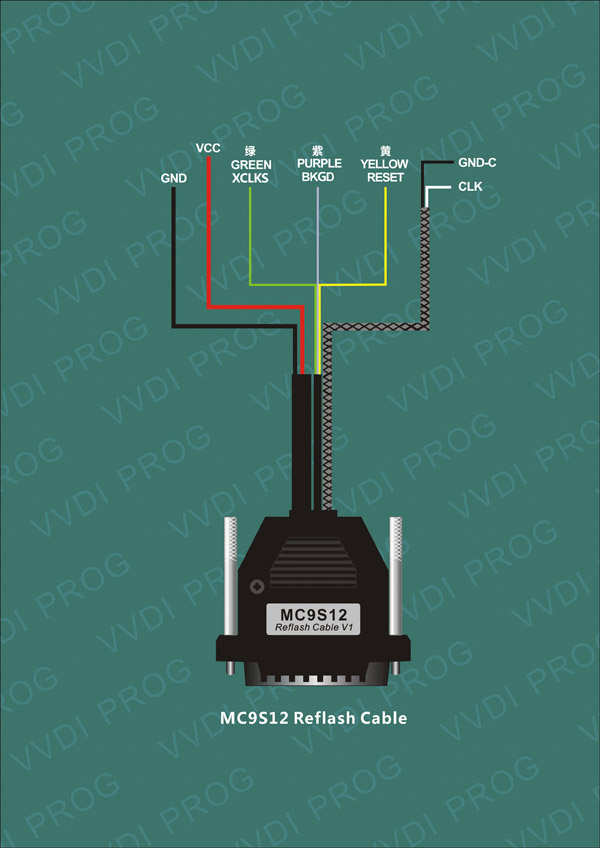

1.3.4  MC9S12 Reflash Cable
Used to program MC9S12 series chip


How to Update VVDI-Prog Software & Firmware?

Software Update
You can get from our "Download" page or in description,we always list out download link.

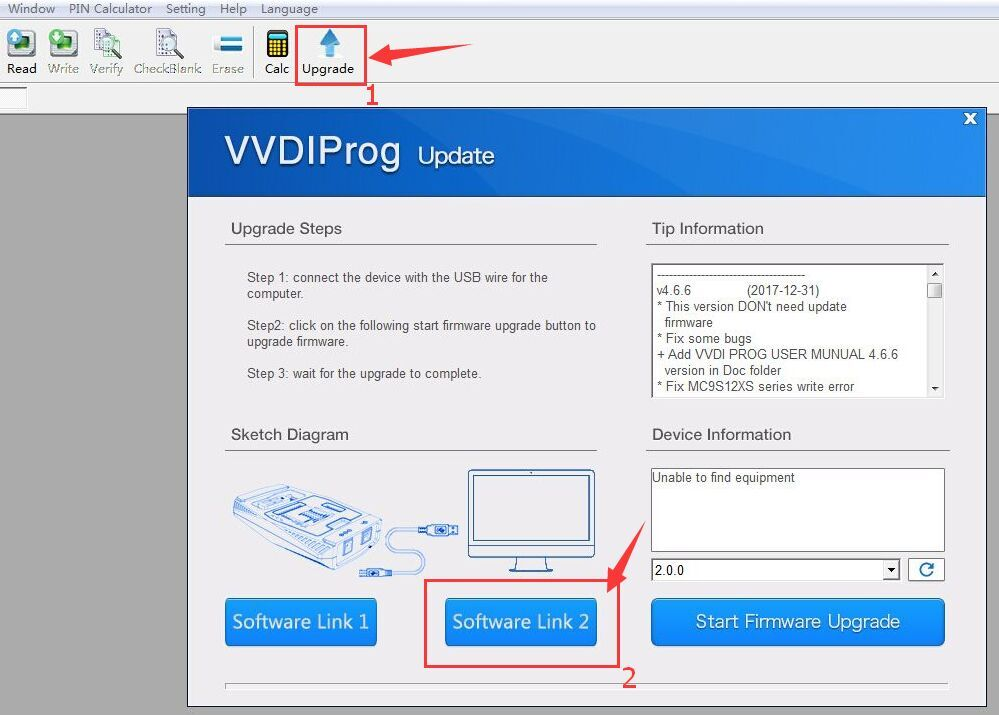

Get in VVDI prog software:Click the "Upgrade" button enter the upgrade interface, show as following

Firware:
Please note:Firmware is necessary only when you are told to update.  Press "Start Firmware Upgrade" button.

Package List:
1pc x Programmer multiplexer
1pc x Square USB cable
1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
Note:this link do not have the PCF79XX Adapter,if you need this gift,you can choose another link like this:VVDI PROG with PCF79XX adapter
