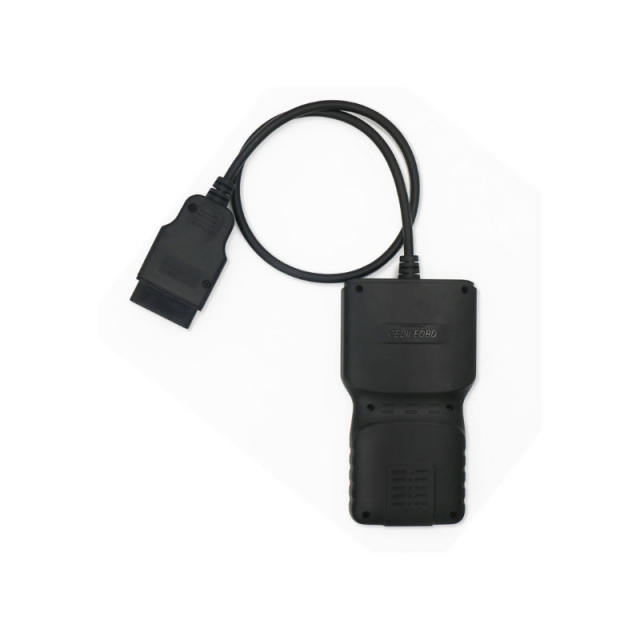

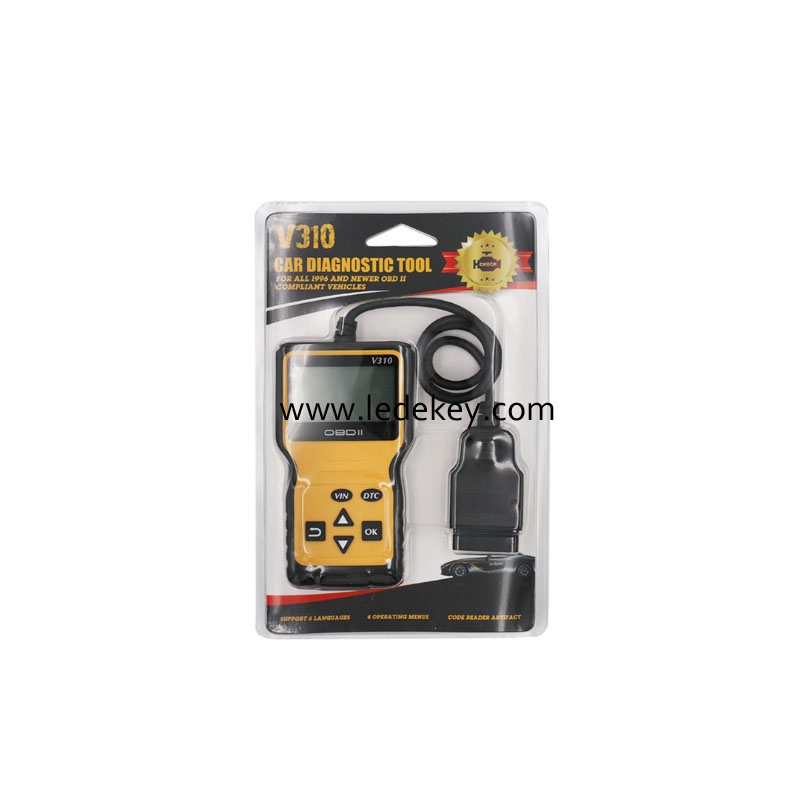

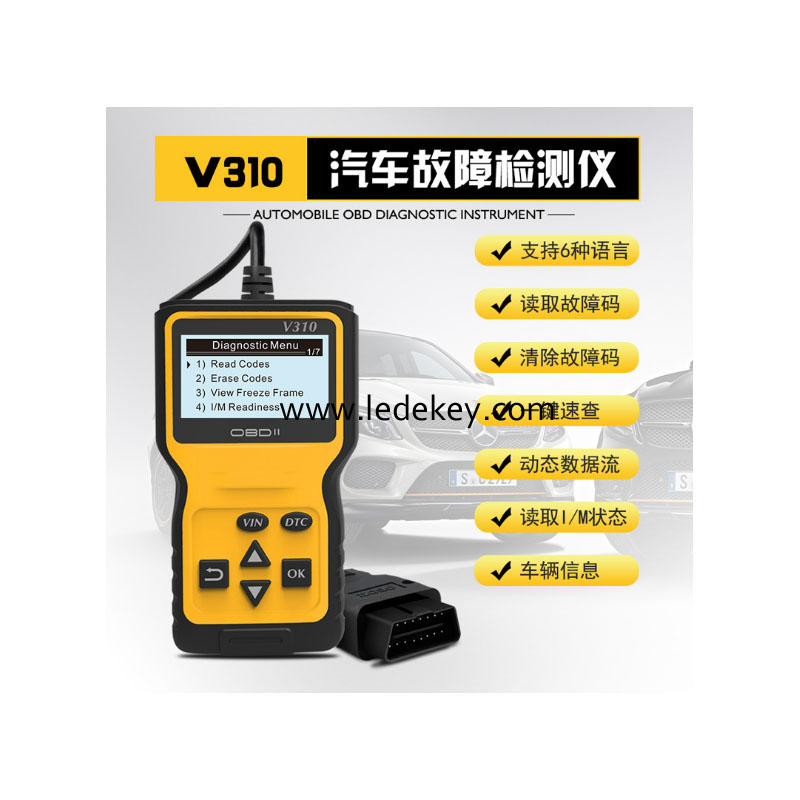

V310 OBD2 CAR Diagnostic Tool

Weight: 0.4kg
Model No. LKP-29
Quantity:
Availability: In Stock
  • Description


Code Reader V310 Features & Functions:

  1.
Brand new and high quality.
  1.
  2.
Support Multi-brand cars, works with all 1996 and later OBDII compliant US,European and Asian vehicles.
  1.
  2.
Multi-language supported: English, French, Italian, Spanish, German, Dutch.
  1.
  2.
Supporting shortcut key queries.(VIN,DTC)
  1.
  2.
Support Read/Clear diagnostic trouble codes,I / M readiness,Vehicle InFo,turn off the MIL ("Check Engine" light) an so on.
  1.
  2.
Display current sensor data, including:
  1.
  2.
Engine RPM
  1.
  2.
Calculated Load Value
  1.
  2.
Coolant Temperature
  1.
  2.
Oxygen sensor voltages/associated short term fuel trims
  1.
  2.
Fuel System status
  1.
  2.
Fuel Pressure
  1.
  2.
Absolute Throttle Position
  1.
  2.
Air Flow Rate
  1.
  2.
Intake Air Temperature
  1.
  2.
Timing Advance
  1.
  2.
Intake Manifold Pressure
  1.
  2.
Long Term Fuel Trim
  1.
  2.
Short Term Fuel Trim
  1.
  2.
Vehicle Speed
  1.
  2.
Fuel System Status
  1.
  2.
Code Reader V310 Support Multi-Brands Cars
  1.
  2.
AND Many others...
  1.

Multi-Protocol Support:
  1.
1. SAE J1850 PWM (41.6Kbaud)
  1.
  2.
2. SAE J1850 VPW (10.4Kbaud)
  1.
  2.
3. ISO9141-2(5 baud init, 10.4Kbaud)
  1.
  2.
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  1.
  2.
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
  1.
  2.
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
  1.
  2.
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
  1.
  2.
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
  1.
  2.
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
  1.

V310 Specifications:
  1.
Display:Badit,128 x64 pixel display
  1.
  2.
External Power:8.0 to 15.0 Volts provided via vehicle battery
  1.
  2.
Storage Temperature:-20 ~70℃(-4 ~158℉)
  1.
  2.
Operating Temperature: 0~60℃( 32~140℉)
  1.

Package included:
  1.
1x Car OBD2 Diagnostic Tool
  1.
  2.

1x English Manual
