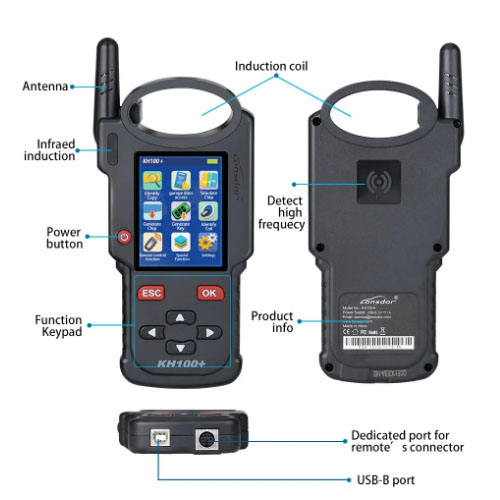

LONSDOR KH100+ Remote Key Programmer Latest Handheld Device Update Version of KH100

onsdor KH100+ Highlights:
1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data(over-range data collection).
5. Exclusive support for 8A(H chip) generation.
6. Built-in WIFI module, can connect to network at any time
7. Handy chip holder integrated, 902MHZ supported
8. Toyota 8A Smart Key Direct copy to Add key (Latest Update)
9. Check Lonsdor KH100+ Vehicle List
10. With Extra For Toyota AKL License, KH100+ will be able to work on Latest for Toyota & Lexus All Key Lost and Add Key.

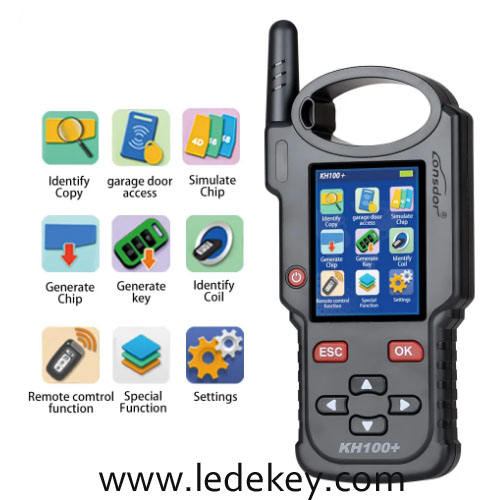

Lonsdor KH100+ Function List:

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function


1. Detect Infrared Signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal
2. FT Smart Key
For Toyota or for Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.

3. Unlock for Toyota Smart Key/Detect for Toyota Key Status
Put in the smart key, click OK to operate.

4. Charge Key
For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.

Lonsdor KH100+ Registration Guide:
Note: After booting the device, please connect to WIFI and enter the following process.

New User
1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
4) Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

Registered User (who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2) Boot the device and enter registration activation process.
3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.

How to update Lonsdor KH100+:

Enter settings menu
Connect the device to network
Then choose [check for updates]
One-click for online update!

Lonsdor KH100+ Specifications:

Size: 193mm*88mm*24mm
Screen size: 2.8 inch color screen
Resolution: 320*240
Battery: 3.7V 2000mA/H
Power: 5V 500MA
Work Temperature: -5~60℃
USB: USB-B/Charge-Data Transfer
Connector Port: PS2-7Pin OD3.5 7Pin,1.27 Spacing,The 2ND Pin:NC

Package includes:

1set x Lonsdor KH100+ Hand-Held Remote Key Programmer
